Why Choose Us?
1. Our factory was established in 2008, well-experienced in manufacture.
2. We pay more attention to product quality. We don't debase product quality in the price competition.
3. Our products are 100% tested before delivery.
4. Our after-sales service is timely (24 hours online) and efficient.
5. We specialize in excavator hydraulic breaker and excavator parts
We supply the parts of Hydraulic Breaker,
such as cylinder, front head, back head, piston, chisel, accumulator, seal kits, side bolts, through bolts, etc.
Bush set for Hydraulic breaker: 1) Reliable quality 2) Very competitive price 3) Long time service 4) Prompt shipment
Main Spare parts
| → Through bolts: Longer service life by to applied heat treatment. |
| → Back head: Using 20CrMo steel, impact energy is accumulated due to charged nitrogen gas in the block. |
| → Front Head: Using 20CrMo steel, high quality with long using life . |
| → Valve: using grinding processing to improve the size presicion, position accuracy & coordination accuracy. |
| → Cylinder body: Material: 20CrMo, high temerature quenching treatment, grinding processing; |
| → Piston: Longer service life by optimized design and high quality special steel. |
| → Back Head: Using 20CrMo material provided by domestic famous manufacturer, forging again and again to make |
| internal organization more tight and increasing the hydraulic breaker abrasion resistance. |
| → Chisel: The specially heat treated chisel is directly applied to break rocks. |
| Four types for your choise: Moil, Blunt, Flat, Conical Point. The material is 42Crmo. |
| →Main Body: Including Front head, cylinder and back head. Each part is in best performance. |
| → Seal Kit: We can supply all brands seal kit which are most famous brand in the business line. |

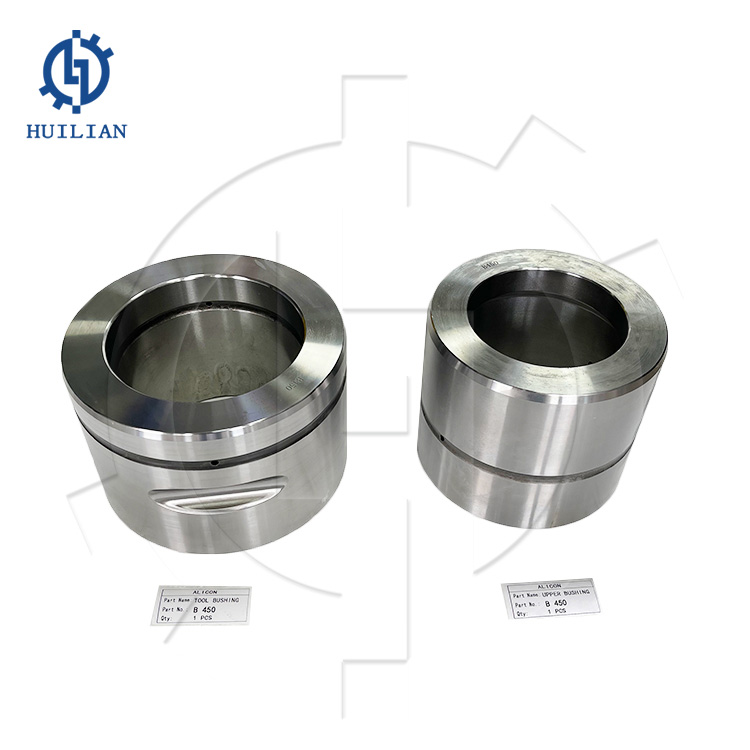

Rock Hammer Parts Lower Upper Bush ALICON B450 Front Cover Cylinder Bush For Daemo Breaker
| Part name | Hydraulic Breaker Bushing | MOQ | Negotiable |
| Material | Metal | Packing | PP Bag Carton |
| Color | Customer's Request | Loading Port | Huangpu |
| Logo | Customer's Request | Delivery time | 1-7 days |
More Daemo Breaker Models
| Daemo/demo | S700, S900, S1300, S1800, S2200-II, S2300, S2500, S5000, DMB10, DMB20, DMB30, DMB40, |
| DMB50, DMB70, DMB90, DMB140, DMB180, DMB210, DMB230, DMB250, DMB450, DMB800, |
| ALICON-B10, ALICON-B20, ALICON-B30, ALICON-B40, ALICON-B50, ALICON-B70, ALICON-B90, ALICON-B140, |
| ALICON-B180, ALICON-B210, ALICON-B230, ALICON-B250, ALICON-B450, ALICON-B600, ALICON-B800, S3000, S3600, DMB300, DMB360, ALICON-B300, ALICON-B360 |
Product Parameter
| Size | Size | Size | Size |
| (Inner Diameter*Outer Diameter*Height) | (Inner Diameter*Outer Diameter*Height) | (Inner Diameter*Outer Diameter*Height) | (Inner Diameter*Outer Diameter*Height) |
| mm | mm | mm | mm |
| 55*70*50 | 90*100*100 | 110*135*100 | 40*50*45 |
| 60*75*60 | 90*110*90 | 110*135*120 | 40*50*60 |
| 65*80*80 | 100*115*70 | 120*135*110 | 45*55*50 |
| 70*80*80 | 100*115*100 | 120*140*100 | 45*60*50 |
| 70*90*90 | 100*116*90 | 120*140*120 | 50*60*60 |
| 71*86*60 | 100*130*100 | 125*140*90 | 50*65*50 |
| 75*90*90 | 100*130*120 | 30*50*30 | 50*65*60 |
| 80*95*70 | 110*130*120 | 35*45*45 | 55*70*60 |
| 80*100*85 | 110*135*100 | 30*50*40 | 55*70*70 |
Hydraulic Breaker Spare Parts
| Hammer Parts | Main Body | Back Head | Charging Valve | Cylinder |
| Socket Plug | Piston | Adapter | Valve | Valve Plug |
| Front Head | Grease Nipple | Rod Pin | Stop Pin | Rubber Plug |
| Ring Bush | Thrust Bush | Upper Bush | Front Cover | Tool Bush |
| Rod Moil Point | Chisel | Washer | Through Bolt | Side Rod |
| Air Check Valve | Valve Adjuster | Accumulator | Accumulator Body | Accumulator Cover |
| Charging V/V | Diaphragm | Seal Kit | O-Ring Seal | Gas Seal |
| Buffer Seal | Dust Seal | U-Packing | Back-up ring | Side Bolt |
| Down Cushion | Tool Set | N2 Gas Charging Set | N2 Gas Cylinder | B-3way valve assy |
| Seal Retainer | Valve Sleeve | Front Head Pin | Lower Bush | Hex Nut |
| Socket Bolt | Step Seal | Upper Cushion | Rubber Pad | Shock Absorber |
Company Profile
Huilian Machine Equipment Co., Ltd.( KOKO SHOP)
Guangzhou Huilian Machinery Equipment Co., Ltd. Our company was established in 2011.
Huilian is a professional spare parts manufacturer and reliable supplier, providing almost all spare parts for various models rock breakers.
Specializes in:
Excavator accessories
Hydraulic breaker accessories
Breaker Spare Parts Suitable for the brands: SOOSAN, FURUKAWA, KRUPP, ATLAS-COPCO, EDT, JCB, NPK, , HANWOO, TOKU, FINE, OKADA, SAGA, MONTABERT, INDECO, KWANGLIM, RAMMER, KONAN, KOMATSU, GENERAL etc. Excavator Spare Parts Suitable for the brands: CATEEEEEEEEEEEE, KOMATSU, HITACHI, EC, KOBELCO, cx, SUMITOMO, DOOSA, NHYUNDAI, SANY, XG ect. The logistics in Guangzhou
is very convenient that we deliver goods to the whole world.
